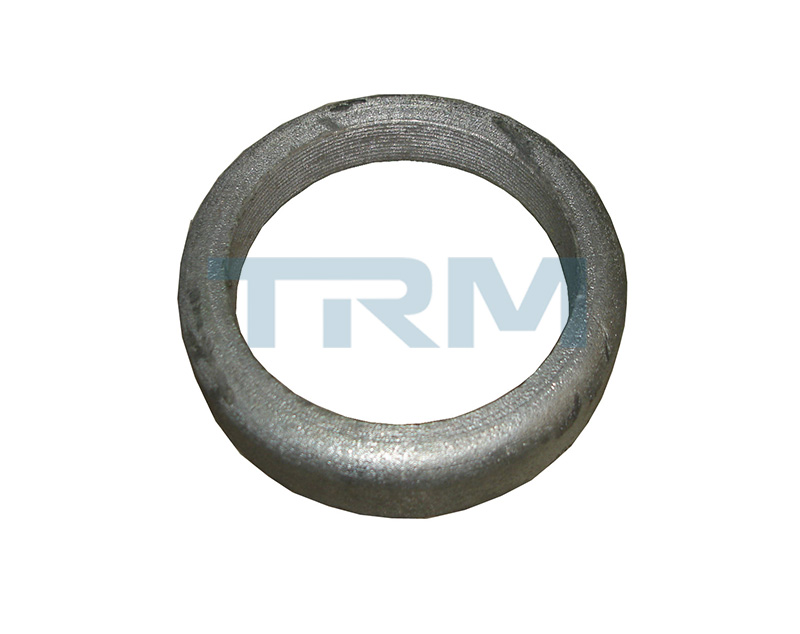

Support ring normally is designed to use together with Friction bolt, or pre-attached on friction bolt when assemble with bearing plate in the project of underground support. It does help to make the friction bolt and Friction Bolt completely attached to the bearing plate against the rock surface, especially in the condition of rough rock surface, lead the friction bolt in a perfect performance in the supporting system.

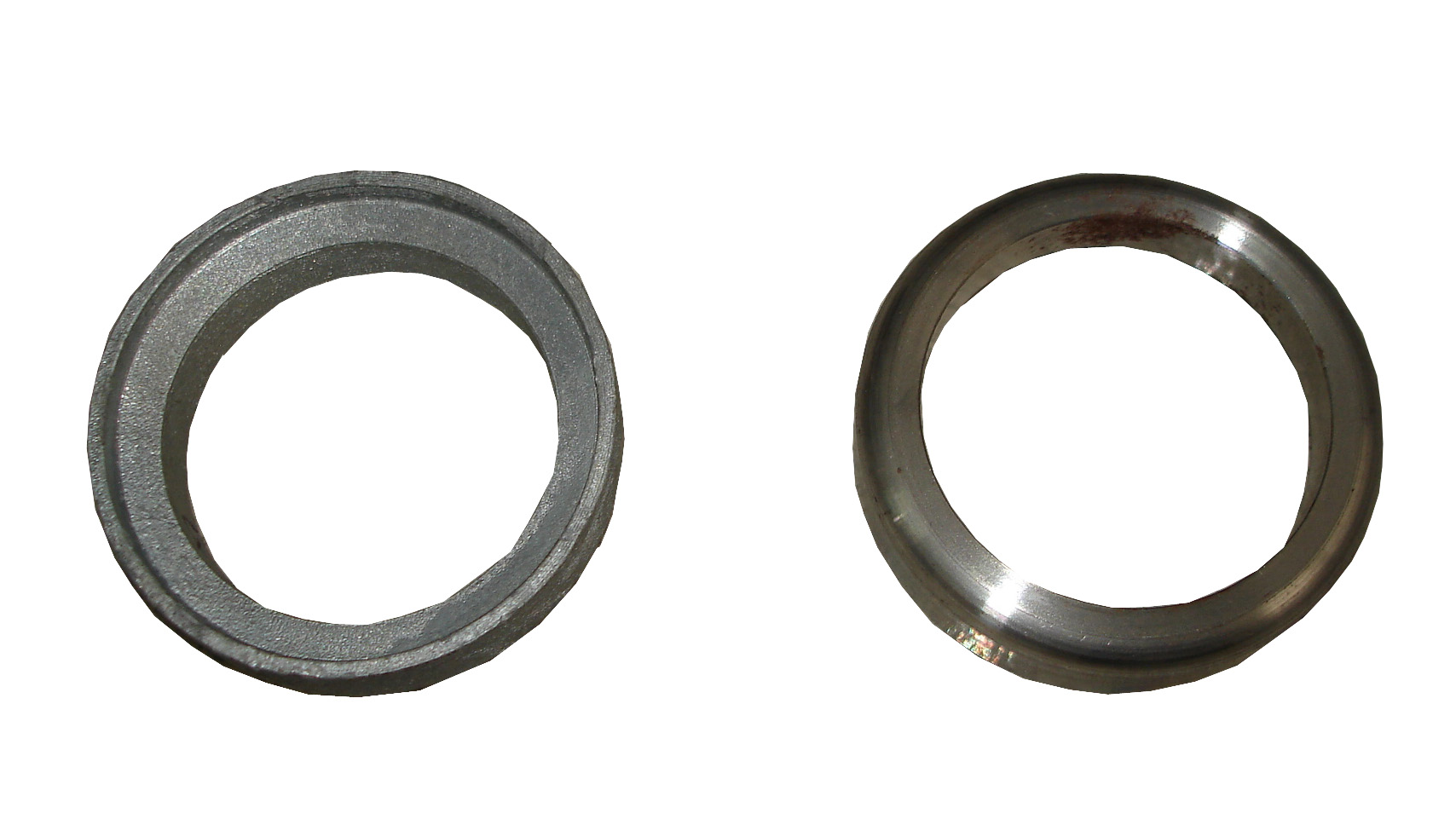

a friendly round machined-end surface of the support ring could help the friction bolt attach tightly with the bearing plate no matter from which directions, its another end surface was designed to fit the ring of friction bolt and could sit on the ring properly, usually be attached onto the friction bolt by glue to avoid the moving and missing during assemble.
The support ring normally was made by mild steel, and treated by zinc plating or galvanizing.
OEM service is available, and we welcome customers to offer their own design.

▶ Inspect the Support Ring: Check the support ring for visible damage, deformation, or defects before installation. Ensure that its dimensions are compatible with the friction bolt and bearing plate.
▶ Position the Support Ring: Place the support ring in its designated position on the friction bolt, or use the bolt assembly with the ring pre-attached, according to the product design.
▶ Fit the Bearing Plate: Position the bearing plate over the friction bolt and align it with the support ring to ensure proper contact between the components.
▶ Install the Friction Bolt: Align the tapered end of the friction bolt with the pre-drilled hole and use the appropriate driving equipment to insert the bolt until the bearing plate fits firmly against the rock surface.
▶ Check the Support Assembly: After installation, verify that the support ring and bearing plate are correctly positioned and that the plate maintains firm contact with the rock surface, including uneven rock conditions.
