Friction Bolt: Complete Guide to FAQs

Jun. 06, 2024

Friction bolts, also known as split set bolts, are essential components in mining and tunneling for ground support. They provide immediate and reliable reinforcement in various geological conditions. This guide answers the most frequently asked questions about friction bolts, offering insights into their usage, benefits, and installation process.

What is a Friction Bolt?

A friction bolt is a type of ground support anchor used primarily in mining and tunneling operations. It consists of a steel tube with a longitudinal split down its length. When driven into a pre-drilled hole, the tube's split closes, generating frictional resistance along the entire length of the bolt. This friction holds the bolt in place, providing immediate support to the surrounding rock or soil.

How Does a Friction Bolt Work?

The working principle of a friction bolt relies on the interaction between the bolt and the rock or soil surrounding the drilled hole. As the bolt is driven into the hole, the split in the bolt causes it to contract slightly, creating a tight fit. The friction generated between the bolt and the hole walls holds the bolt in place, preventing movement and providing reinforcement. This process ensures immediate support and enhances the stability of the excavation.

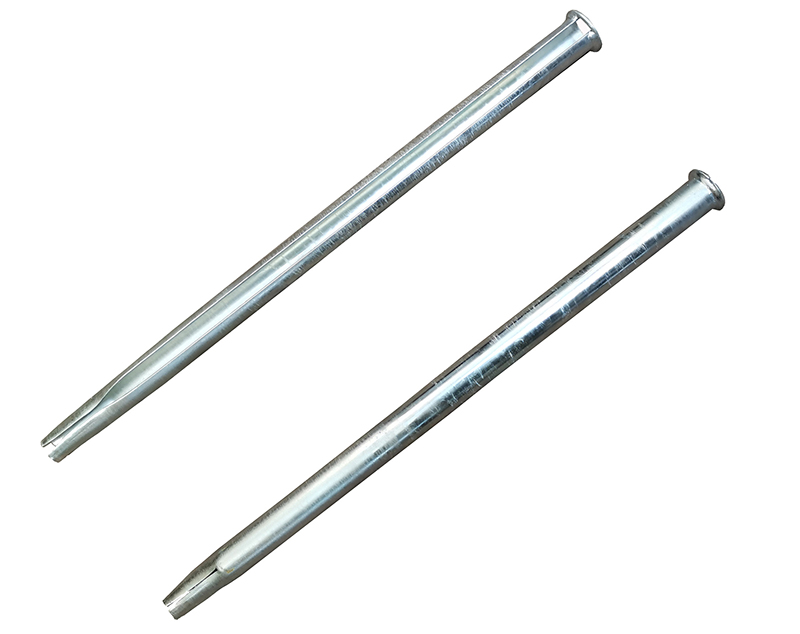

33mm Split Set and Friction Bolt for Ground Support

33mm Split Set and Friction Bolt for Ground Support

What are the Benefits of Using Friction Bolts?

Friction bolts offer several advantages for ground support applications:

  • Immediate Support: Friction bolts provide instant reinforcement as soon as they are installed, ensuring the stability of the excavation.

  • Easy Installation: The installation process is straightforward and requires minimal equipment, making it quick and cost-effective.

  • Adaptability: Friction bolts can be used in various ground conditions, including hard rock and soft soil, making them versatile for different applications.

  • Durability: Made from high-strength steel, friction bolts are resistant to corrosion and wear, ensuring long-term performance.

  • Cost-Effective: Their simple design and ease of installation make friction bolts a cost-effective solution for ground support.

How to Install a Friction Bolt?

Installing a friction bolt involves the following steps:

  1. Drill the Hole: Start by drilling a hole into the rock or soil where the bolt will be installed. The hole diameter should match the bolt size to ensure a tight fit.

  2. Insert the Bolt: Position the friction bolt at the mouth of the drilled hole and start driving it in using a jack leg, stoper drill, or other suitable equipment.

  3. Drive the Bolt: Continue driving the bolt until it is fully inserted. The friction between the bolt and the hole walls will hold the bolt in place, providing immediate support.

  4. Check the Installation: Ensure that the bolt is securely in place and providing the necessary support. If required, use a torque wrench to verify the bolt's tension.

What are the Common Applications of Friction Bolts?

Friction bolts are widely used in various industries for ground support, including:

  • Mining: Used to stabilize underground mines, preventing rock falls and ensuring the safety of workers.

  • Tunneling: Provide support for tunnels during construction, enhancing the stability of the excavation.

  • Civil Engineering: Used in the construction of underground structures, such as subways and basements, to reinforce the surrounding ground.

  • Slope Stabilization: Employed in slope stabilization projects to prevent landslides and soil erosion.

Questions and Answers

Q: What materials are friction bolts made from?

Friction bolts are typically made from high-strength steel to ensure durability and resistance to corrosion and wear.

Q: How do I choose the right size friction bolt?

The size of the friction bolt depends on the diameter of the pre-drilled hole and the specific requirements of the ground support application. It is essential to match the bolt size to the hole diameter for optimal performance.

Q: Can friction bolts be used in all ground conditions?

Yes, friction bolts are versatile and can be used in various ground conditions, including hard rock and soft soil. However, the effectiveness may vary based on the specific geological conditions, so proper assessment is crucial.

Q: What is the typical lifespan of a friction bolt?

The lifespan of a friction bolt depends on the environmental conditions and the quality of the material. High-strength steel bolts can last for several years, providing long-term support and stability.

Q: Are there any limitations to using friction bolts?

While friction bolts offer many benefits, they may not be suitable for extremely loose or highly fractured ground conditions where additional support systems might be required.

In conclusion, friction bolts are a reliable and cost-effective solution for ground support in various industries. Understanding their benefits, installation process, and applications can help you make informed decisions to enhance the stability and safety of your projects.
